316Ti Stainless Steel Bars
|
|
316Ti Stainless Steel Black Bars |
|
 |
SS 316Ti | AISI 316Ti | Euronorm 1.4571 | DIN 1.4571 | JIS SUS316Ti | UNS S31609 | BS 316S51 | X6CrNiMoTi17-12-2 |
Material Condition |
: |
Annealed, Solution Annealed & Pickled, Quenched & Tempered, Hardened & Tempered. |
Grades Equivalent
& Specification Standards |
: |
SS 316Ti | AISI 316Ti | Euronorm 1.4571 | DIN 1.4571 | JIS SUS316Ti | UNS S31609 | BS 316S51 | X6CrNiMoTi17-12-2 |
| |
|
Tensile Strength
(MPa) min |
Yield Strength
0.2% Proof
(MPa) min |
Elongation
(% in 50mm) min |
Hardeness |
| Rockwell B (HR B) max |
Brinell (HB) max |
| 515 |
205 |
40 |
95 |
217 |
Round Bars |
: |
Sizes: 5.5 mm to 160 mm.
Length: upto 6 mtrs. |
Forged Bars |
: |
Sizes: 150 to 300 mm.
Length: upto 6 mtrs. |

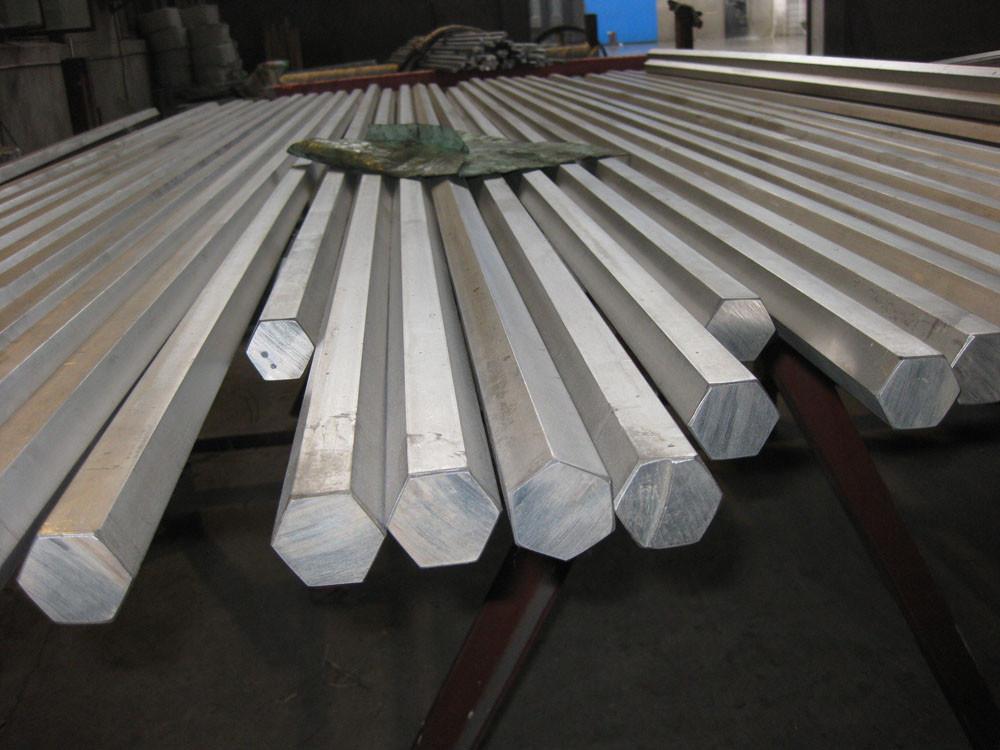

| Hexagon Bars |
|
Sizes:12mm to 75mm
Length: Upto 6mtr |
Continuous Cast Billets |
: |
120 x 120 to 225 x 225mm as per requirement. |
| Testing |
|
Ultra Sonic Flaw Detection Test, Lab Chemical Analysis, Physical Strenght Test, Micro Structure test |
Round Cornered Square Billets |
: |
45 mm to 122 mm as per requirement. |
Application |
: |
- Food preparation equipment particularly in acidic environments.
- Laboratory benches & equipment, medical equipment
- Coastal architectural paneling, railings & trim
- Boat and ship fittings
- Chemical containers for transport
- Heat Exchangers
- Bolts, bolt pins, screws, etc.
- Springs
|
|
|
|
316Ti Stainless Steel Bright Bars |
|
 |
|
| Size Range |
: |
3mm upto 100mm, 1/8” upto 4”. |
| Hexagons Bars |
|
Sizes:12mm to 75mm
Length: Upto 6mtr |
| Supply Condition |
: |
Cold Drawn & Polished.
Cold Drawn, Centerless Ground & Polished.
Peeled, Centerless Ground & Polished.
Peeled (Rough Turned.
Buffed (Mirror Finish).
Chamfered(30/45/60 Degree).
Solution Annealed, Grit 240-320 Polish. |
| Grades (AISI) |
: |
SS 316Ti | AISI 316Ti | Euronorm 1.4571 | DIN 1.4571 | JIS SUS316Ti | UNS S31609 | BS 316S51 | X6CrNiMoTi17-12-2 |
| Size Tolerance |
: |
h8, h9 (DIN 671), h10, h11,ASTM A484, DIN 1013. |
| Length |
: |
UPTO 6 Mtrs. |
| Testing |
|
Ultra Sonic Flaw Detection Test, Lab Chemical Analysis, Physical Strenght Test, Micro Structure test |
| Packing |
: |
In 250 to 1000 Kgs. export worthy bundles, wrapped with HDPE cloth and strapped with metal strips at 3-4 places. Identification labels are tagged according to standard specification with color code. Wooden boxes are provided on demand. Each bar can be packed in protective folio on demand. |
| Application |
: |
- Food preparation equipment particularly in acidic environments.
- Laboratory benches & equipment, medical equipment
- Coastal architectural paneling, railings & trim
- Boat and ship fittings
- Chemical containers for transport
- Heat Exchangers
- Bolts, bolt pins, screws, etc.
- Springs
|
|
|
|

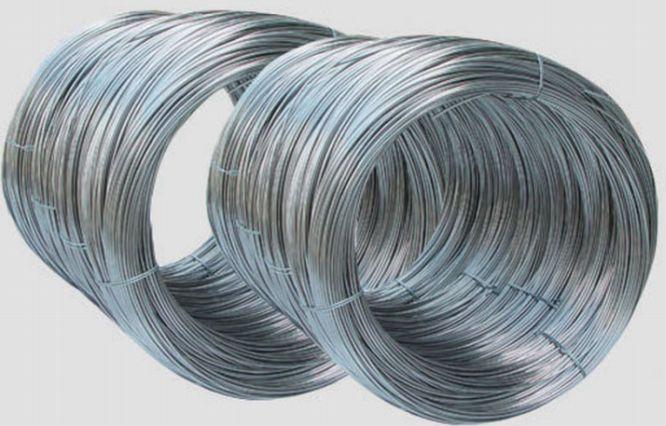

316Ti Stainless Steel Wire Rods |
|
 |
|
We are instrumental in providing our clients with Stainless Steel Wire Rods that is applied for varied purposes like free cutting, welding and cold heading. These rods are available in sizes like 5.5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22 and 23 MM diameter. Moreover, the coil size of these rods are offered in the range of 850 MM to 1200 MM diameter. The detailed technical specifications of these rods are tabulated below:
| Size range |
5.5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22 and 23 MM Dia |
| Supply Condition |
Hot Rolled, Hor Rolled Pickled, Hot Rolled Annealed & pickled (HRAP) |
| Size Tolerance |
5.5 TO 10 MM: + / - 0.20 MM
1.1 TO 16 MM: +/ - 0.25 MM
17 to 23 MM : +/ - 0.30 MM |
| Size of coil |
850 MM to 1200 MM Dia. |
| Weight of coil |
900 to 1000 Kgs. |
| Grades (AISI) |
SS 316Ti | AISI 316Ti | Euronorm 1.4571 | DIN 1.4571 | JIS SUS316Ti | UNS S31609 | BS 316S51 | X6CrNiMoTi17-12-2 |
| Testing |
Ultra Sonic Flaw Detection Test, Lab Chemical Analysis, Physical Strenght Test, Micro Structure test |
| Packing |
The coils are properly packed with HDPE cloth and strapped with signode straps. |
| Usage |
- Food preparation equipment particularly in acidic environments.
- Laboratory benches & equipment, medical equipment
- Coastal architectural paneling, railings & trim
- Boat and ship fittings
- Chemical containers for transport
- Heat Exchangers
- Bolts, bolt pins, screws, etc.
- Springs
- Surgical Appartus
- Surgical Implants
|
|
