- Titanium Bar, Rod and Wire Stocks
- Supra Alloys stocks a large and varied inventory of titanium mill-product forms such as plate, sheet, coil, strip, foil, billet, bar and wire. Our material is of prime quality and is fully certifiable to orthopedic (ASTM F-136, F167 and F1472), aerospace (AMS, Mil-T) and industrial specifications (ASTM and ASME). Supra Alloys has experienced operators that deal with complex operations such as titanium machining and titanium processing.
- Quality Titanium and Titanium Alloys Bar, Rod and Wire Inventory
- The bar, rod and wire products on our titanium stock include CP Grade 1 – designed for excellent weldability and impact toughness, CP Grade 2, CP Grade 3 – used where corrosion resistance is a major design factor, such as when creating aircraft quality titanium, CP Grade 4, Grade 7 and Grade 11, as well as titanium alloys. Supra Alloys’ inventory contains 6Al-4V or Grade 5, 6Al-4V ELI or Grade 23, Grade 12, 5Al-2.5Sn, 6Al-2Sn-4Z1-2Mo, 15V-3Cr-3Sn-3Al and many other titanium and titanium alloys bar, rod and wire. All bar is supplied in standard 10-14foot mill random length, except special shipping or customer requirements.
Titanium Bar, Rod and Wire Offered by Anand Steels
TITANIUM GRADES in stock are as follows:
CP Grades |
Ti Alloys |
Grade 1 |
6Al-4V or Grade 5 |
Grade 2 |
6AL-4V ELI or Grade 23 |
Grade 3 |
Grade 12 |
Grade 4 |
5Al-2.5Sn |
Grade 7 |
6Al-2Sn-4Zr-2Mo |
Grade 11 |
15V-3Cr-3Sn-3Al |
|
8Al-1Mo-1V |
|
3Al-2.5V |
|
6Al-6V-2Sn |
|
3Al-8V-6Cr-4Mo-4Zr |
|
13V-11Cr-3Al |
Round Bar
.160" Dia. to under 4-1/2" Dia. x RL
[ Up to 17-3/4"]
[Titanium Bar can be Saw Cut to any Custom size.]
[By ASTM definition, Bar has a cross-sectional area less than 16 inch. Larger sizes, however, are often also referred to as Bar.
Diameter (OD) |
Weight (lbs./ft.) |
Diameter (OD) |
Weight (lbs./ft.) |
1/4 |
.10 |
2 |
6.14 |
5/16 |
.11 |
2-1/4 |
7.78 |
3/8 |
.22 |
2-1/2 |
9.60 |
7/16 |
.29 |
2-5/8 |
10.58 |
1/2 |
.38 |
2-3/4 |
11.62 |
5/8 |
.60 |
3 |
13.82 |
3/4 |
.86 |
3-1/4 |
16.22 |
7/8 |
1.18 |
3-1/2 |
18.82 |
1 |
1.54 |
3-3/4 |
21.60 |
1-1/8 |
1.94 |
4 |
24.58 |
1-1/4 |
2.40 |
4-1/4 |
27.74 |
1-3/8 |
2.90 |
4-1/2 |
31.10 |
1-1/2 |
3.46 |
5 |
38.40 |
1-3/4 |
4.70 |
5-1/2 |
46.46 |
1-7/8 |
5.40 |
6 |
55.30 |
|
|
|

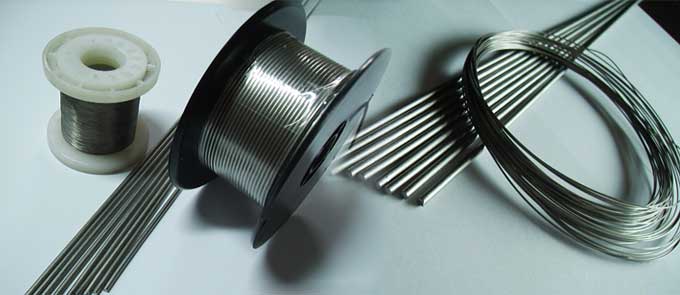

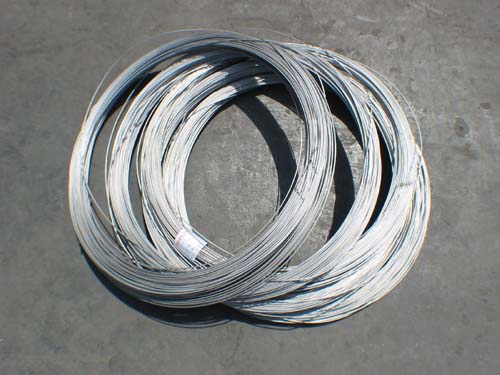

Titanium Wires | Titanium Filler Wires or Rods |
|
 |
|
We are instrumental in providing our clients with Titanium Wire, Filler Wire & Filler Rods In Sizes & Grades Applicable in various Industrial sector.
Size range |
1.6,2.0,2.3,2.5,3,3.5,4,4.5,5mm etc |
Size of coil |
500 MM to 800 MM Dia. |
Weight of coil |
50 to 100 Kgs. |
Packing |
The coils are properly packed with HDPE cloth and strapped with signode straps. |
Usage & Application |
- aerospace (jet engines, missiles, and spacecraft)
- military
- industrial process
- chemicals and petro-chemicals Plants
- desalination plants
- paper & pulp Industries
- automotive
- agri-food
- medical prostheses
- orthopedic implants
- dental and endodontic instruments
- dental implants
- sporting goods,
- jewelry
- mobile phones
|
Following Available Sizes in Titanium Wire & Filler Wire Rod |
Diameter (In) |
Length |
lbs/Ft |
.063 |
10 ft to 12 ft |
164.0 |
.093 |
10 ft to 12 ft |
75.3 |
.116 |
10 ft to 12 ft |
48.4 |
.125 |
10 ft to 12 ft |
41.7 |
.156 |
10 ft to 12 ft |
26.8 |
.187 |
10 ft to 12 ft |
18.6 |
.214 |
10 ft to 12 ft |
14.2 |
|
|
|
|
