15-5pH Stainless Steel Bar & Wire Rods |
|
|

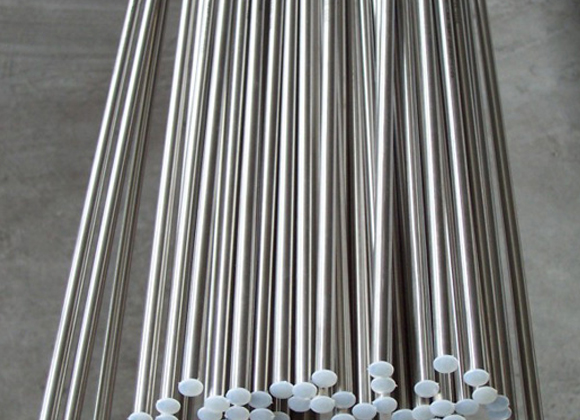

15-5pH Stainless Steel Bars |
|
 |
15-5 pH Stainless Steel Bar || Precipitation hardening Steel || Esshete 15Cr5Ni || Euronorm 1.4545 || UNS S15500
|
Technical Specification:
| Size Range |
3mm upto 100mm, 1/8” upto 4”. |
| Supply Condition |
Cold Drawn & Polished.
Cold Drawn, Centerless Ground & Polished.
Peeled, Centerless Ground & Polished.
Peeled (Rough Turned.
Buffed (Mirror Finish).
Chamfered(30/45/60 Degree).
Solution Annealed, Grit 240-320 Polish. |
| Grades (AISI) |
15-5pH commonly referred as Alloy 630,Euronorm 1.4545,UNS15500 etc
Other Grades:pH 13-8Mo, 17-7 pH (precipitatin hardening steel) |
Standards
|
- AMS 5659
- ASTM A564
- EURONORM 1.4545
- Esshete 15Cr5Ni
- UNS S15500
- DIN 1.4545
|
| Size Tolerance |
h8, h9 (DIN 671), h10, h11,ASTM A484, DIN 1013. |
| Length |
UPTO 6 Mtrs. |
| Packing |
In 250 to 1000 Kgs. export worthy bundles, wrapped with HDPE cloth and strapped with metal strips at 3-4 places. Identification labels are tagged according to standard specification with color code. Wooden boxes are provided on demand. Each bar can be packed in protective folio on demand. |
| Corrosion Nature of 15-5 pH |
Alloy 15-5 PH withstands corrosive attacks better than any of the standard hardenable stainless steels and is comparable to Alloy 304 in most media.
If there are potential risks of stress corrosion cracking, the higher aging temperatures then must be selected over 1022°F (550°C), preferably 1094°F (590°C). 1022°F (550°C) is the optimum tempering temperature in chloride media.
1094°F (590°C) is the optimum tempering temperature in H2S media.
The alloy is subject to crevice or pitting attack if exposed to stagnant seawater for any length of time.
It is corrosion resistant in some chemical, petroleum, paper, dairy and food processing industries (equivalent to 304L grade).
If you would like to know more about 15-5pH stainless steel then click here
15-5PH Technical Data. |
| Typical physical properties for stainless steels alloy 17-4PH |
| Property |
Value |
| Density |
7.75 kg/m3 |
| Modulus of Elasticity |
196 GPa |
| Electrical Resistivity |
0.080x10-6 Ω.m |
| Thermal Conductivity |
18.4 W/m.K |
| Thermal Expansion |
10.8x10-6 /K |
| |
|
|
| Mechanical properties |
| Material Type |
Condition |
Ultimate Tensile Strength (PSI) |
0.2% Yield Strength (PSI) |
Elongation (% In 2in.) |
Reduction Of Area (%) |
Hardness Brinell |
Hardness Rockwell |
| 17-4 PH |
H900 |
190,000 |
170,000 |
10 |
40 |
388 |
C40 |
| 17-4 PH |
H1025 |
155,000 |
145,000 |
12 |
45 |
331 |
C35 |
| 17-4 PH |
H1075 |
145,000 |
125,000 |
13 |
45 |
311 |
C32 |
| 17-4 PH |
H1150 |
135,000 |
105,000 |
16 |
50 |
277 |
C28 |
| 17-4 PH |
H1150-M |
115,000 |
75,000 |
18 |
55 |
255 |
C24 |
| 17-4 PH |
H1150-D |
125,000 |
105,000 |
16 |
50 |
255 min - 311 max |
C24 - 33 |
|
Application of 17-4 pH Steel |
- Food industry
- Valves
- Aircraft Parts
- Gears
- Pump Parts
Also in Petrochemical Plants, Dairy Equipments, Oil Pipeline Ships, Structural Design, High Tensile Springs & Cables, Boilers, Pressure Vessel, Liquid Storage Terminals, Liquid Cargo Ships, |
|
|
|
|
|
|
|
|
|
|
| |
|
15-5 pH Stainless Steel Wire Rods |
|
 |
|
We are instrumental in providing our clients with Stainless Steel Wire Rods that is applied for varied purposes like free cutting, welding and cold heading. These rods are available in sizes like 5.5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22 and 23 MM diameter. Moreover, the coil size of these rods are offered in the range of 850 MM to 1200 MM diameter. The detailed technical specifications of these rods are tabulated below:
| Size range |
2,3,4,5.5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22 and 23 MM Dia |
| Supply Condition |
Hot Rolled, Hor Rolled Pickled, Hot Rolled Annealed & pickled (HRAP) |
| Size Tolerance |
5.5 TO 10 MM: + / - 0.20 MM
1.1 TO 16 MM: +/ - 0.25 MM
17 to 23 MM : +/ - 0.30 MM |
| Size of coil |
850 MM to 1200 MM Dia. |
| Weight of coil |
900 to 1000 Kgs. |
| Grades (AISI) |
15-5pH commonly referred as Esshete 15Cr5Ni ,Euronorm 1.4545 ,UNS S15500 etc
Other Grades:pH 13-8Mo,17-7 pH( precipitation hardening steel) |
| Packing |
The coils are properly packed with HDPE cloth and strapped with signode straps. |
| Usage |
- Food industry
- Valves
- Aircraft Parts
- Gears
- Pump Parts
Also in Petrochemical Plants, Dairy Equipments, Oil Pipeline Ships, Structural Design, High Tensile Springs & Cables, Boilers, Pressure Vessel, Liquid Storage Terminals, Liquid Cargo Ships etc |
|
|
|
|
|
|
