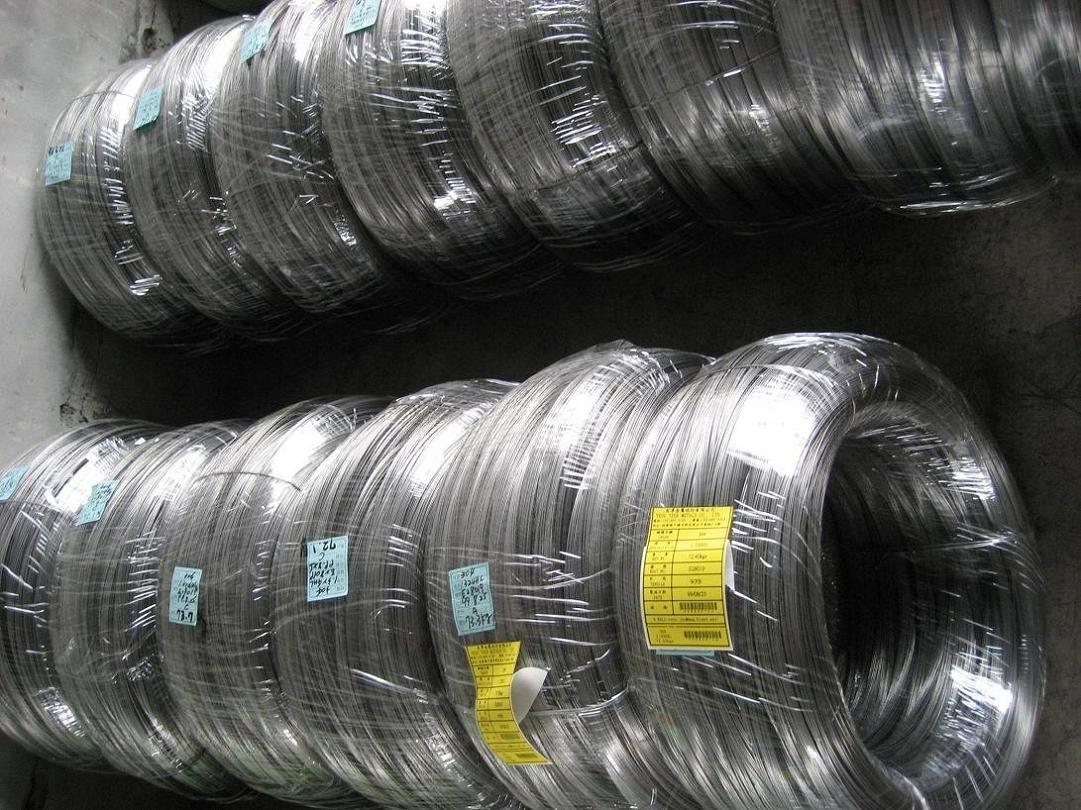

We are instrumental in providing our clients with 303 Grade Stainless Steel Wire Rods that is applied for varied purposes like free cutting, welding and cold heading. These rods are available in sizes like 5.5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22 and 23 MM diameter. Moreover, the coil size of these rods are offered in the range of 850 MM to 1200 MM diameter. The detailed technical specifications of these rods are tabulated below:
| Size range |
5.5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22 and 23 MM Dia |
| Supply Condition |
Hot Rolled, Hor Rolled Pickled, Hot Rolled Annealed & pickled (HRAP) |
| Size Tolerance |
5.5 TO 10 MM: + / - 0.20 MM
1.1 TO 16 MM: +/ - 0.25 MM
17 to 23 MM : +/ - 0.30 MM |
| Size of coil |
850 MM to 1200 MM Dia. |
| Weight of coil |
900 to 1000 Kgs. |
Grades Equivalent
& Specification |
Din 1.4305 | UNS S30300 | SS303 | JIS SUS303 | Euronorm No. 1.4305 | En 58M SS 2346 | BS 303S31 | A1 | Stainless Steel 303 Grade |
| Testing |
Ultrasonic Flaw Detection tests, Lab Chemical Analysis, Physical Anaylsis, Micro Analysis |
| Packing |
The coils are properly packed with HDPE cloth and strapped with signode straps. |
| Usage |
- Nuts & bolts
- Bushings
- Shafts
- Aircraft fittings
- Electrical switchgear components
- Gears
Other : Clevis Pins, Collars, Couplings, Dowel Pins, Gears, Screws, Shafting, Shoulder Screws, Springs |
|
