Hot Rolled Plates
Alloy |
1xxx, 2xxx, 3xxx, 4xxx, 5xxx, 6xxx |
Width Range |
800-1540 mm |
Standard (Trimmed) |
915, 1220, 1400 and 1500 mm |
Standard (Untrimmed) |
1270, 1540 mm |
Thickness |
6-200 mm for 1xxx
10-200 mm for 3xxx, 4xxx
25-200 mm for 5xxx
8-20 mm for 2xxx, 6xxx (stretched) |
Weight |
Depends on dimensions |
Temper |
F / M, O, H1, H111, H112, T4, T6 |
Finish |
Mill Finish |
Cold Rolled Sheets
Alloy |
1xxx, 2xxx, 3xxx, 4xxx, 5xxx, 6xxx, 8xxx |
Width Range |
800-1500 mm |
Standard |
915, 1000, 1159, 1220, 1300, 1321, 1500 mm |
Length Range |
1830-4350 mm |
Standard |
2440, 2540, 2745, 3000, 3050 mm |
Thickness |
0.56-4.00 mm (length & width for sheets having thickness of over 4.00 mm is subject to confirmation) |
Weight |
Depends on dimensions |
Temper |
O, H1, H2, H3, H4, T4, T6 |
Finish |
Mill Finish |

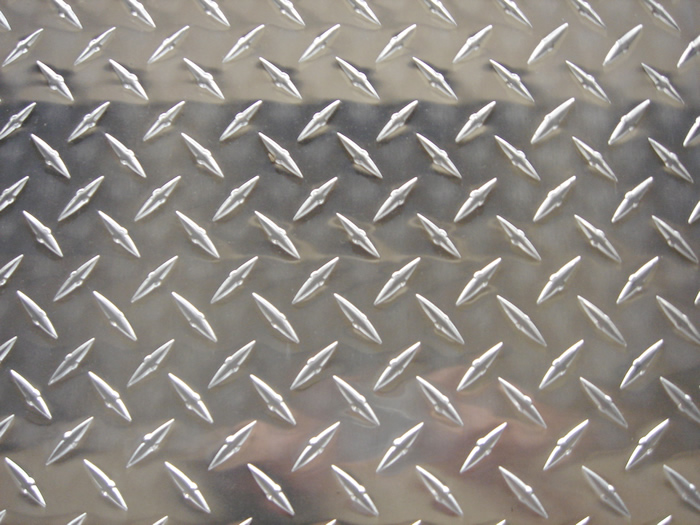

Chequered Sheets
Chequered 6061 Heat Treated |
|
Width Range |
800-1500 mm |
Standard |
813, 880, 1500 mm |
Length Range |
1830-4000 mm |
Standard |
2440, 3660 mm |
Thickness |
1.5-3.25 mm |
Alloy |
6061 |
Temper |
W, WP, M |
Finish |
Mill Finish |
Patterns |
Star, Diamond |
|
|
|
|
|
|
